The spirometer "MAS-1K" is intended for investigation of human respiratory
function by a pneumotachometric method.
The spirometer "MAS-1K" is applied for estimate of the state of the
respiratory system of man with the help of measurement and computation
of all key parameters of breathing and visualization of the process
of breathing. The system uses the due values by most wide-spread standards
by Clement, by ECCS standards and Knudson for adults and for children
Shiryaeva,Knudson, Qanjer, Zapletal (from 4 up to 90 years old man)
, that allows to form automatically preliminary expert conclusion
with the possibility of correction, with the direction of a degree
and type of abnormalities of the respiratory function, and also to
size up the effect of functional tests and effects of the treatment
of patients. It can be used for diagnostics study of adults and children
taking into account their age peculiarities.
Fields of application
 in departments of functional
diagnostics of out-patient and stationary medical institutions;
in medical research institutes;
in family doctor's consulting
room and clinics of family medicine;
in sports, aerospace and military
medicine;
in medical service of firms
for carrying out preliminary and periodic medical examinations.
Key functions of the system
Measurement and visualization in real time mode both quiet (spirometry),
and forced (pneumotachometry) breathing, measurements of maximal breathing
capacity;
Simultaneous review of several curves of forced expiration and self-acting
(or hand-held) choice of best test;
Construction of spirometry graphs (volume-time) and pneumotachometries
(flow-volume, volume-time) in real time, self-acting and hand-held
dimensional scaling of breathing curves;
Calculation of due values by selected standards and comparing them
with the measured values, giving out the expert preliminary conclusion
and the total protocol of patient's examination in tables and diagrams
on both the monitor, and the printer;
The possibility to analysis of dynamics parameters of ventilation
during functional tests (bronchial dilatation test, bronchial provocation
test [up 8], allergenic, etc.), and also assessment of dynamics parameters
of ventilation patient after treatment (comparison mode);
Storing of all patient's examination data (respiration curves and
parameters) in the database, possibility of fast search, review and
comparison of the results of either examinations

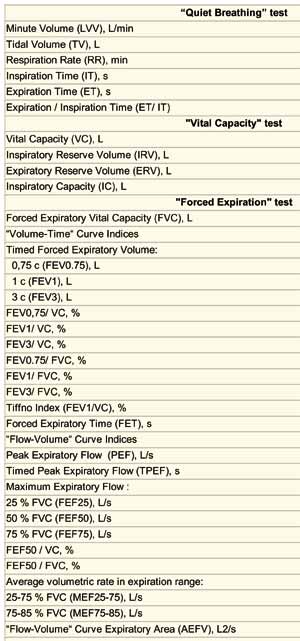

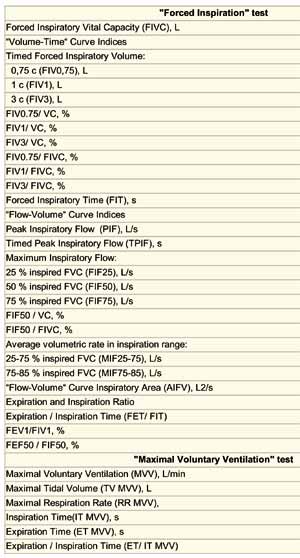

Parameters of pulmonary ventilating function in "MAS-1K" system
Absence of power supply (the recorder powers directly from the USB-port of the computer).
Lightness, compactness, portability - possibility of operation with notebook.
The hygienic method of measurement due to usage of disposable mouthpieces.
Application of modern materials and technologies.
Automatic control of quality ATS/ERS-2005
2 years warranty.

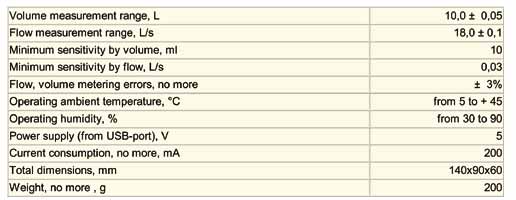

Performances specifications
The spirometer "MAS-1K" works on the base of standard IBM PC compatible personal computer under the control of Windows 2000, XP operating system.
For connection of recorder to the computer, the USB-port is used.
|
